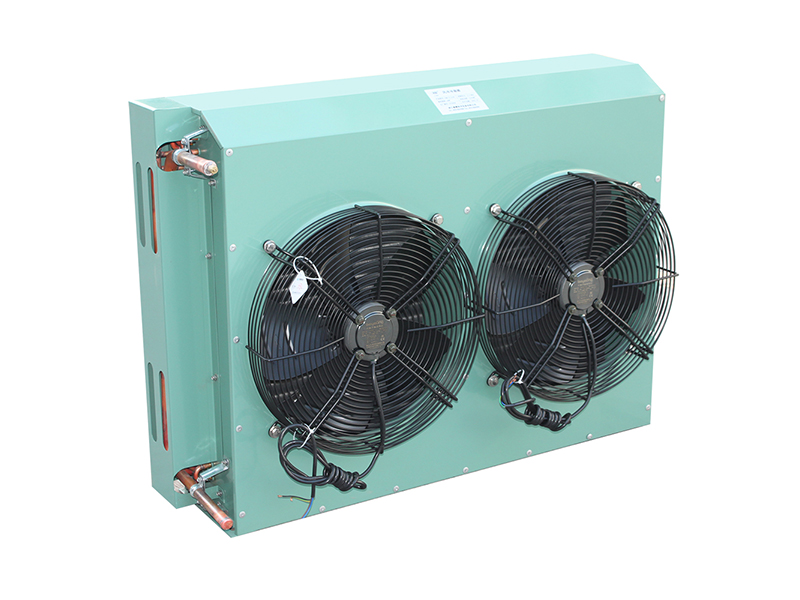

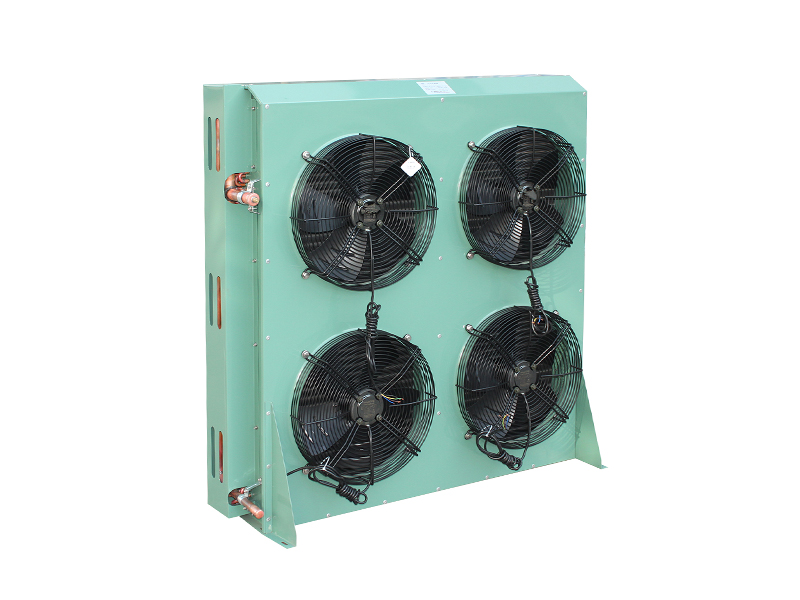

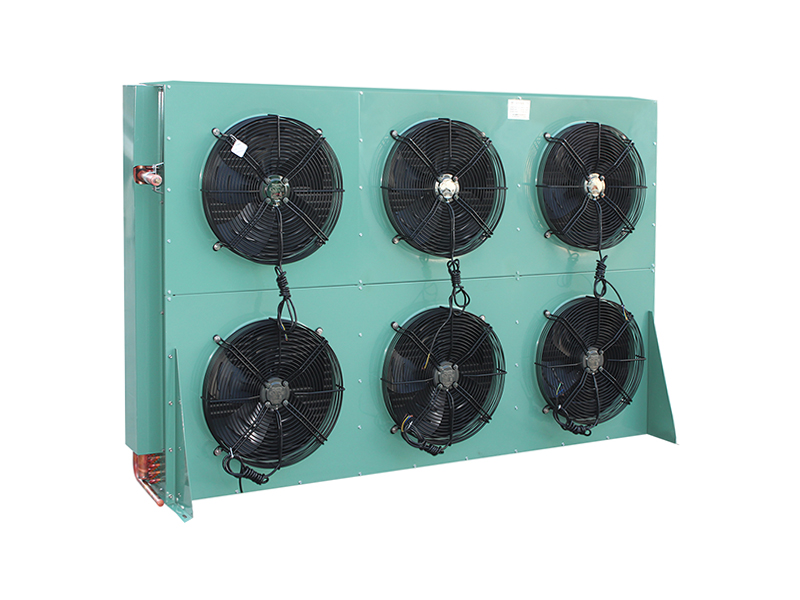

FNH hava soğutmalı kondansatör, soğutma ekipmanında önemli bir bileşendir. Öncelikle, soğutma işlemi sırasında soğutma işlemi sırasında hava konveksiyonu yoluyla salınan ısıyı dağıtarak soğutma sisteminin normal çalışmasını sürdürür. Ürün, çeşitli ısı dağılma ihtiyaçlarını karşılamak için müşteri gereksinimlerine göre farklı türde kondens fanları ile donatılabilir.
FNH tipi hava soğutmalı kondansatörün teknik parametreleri
Model | Isı Değişim Kapasitesi (KW) | Yüzey (㎡) | Bakır boru aranjmanı | Fan Travhea'ya (φmm) | Travhea'ya (Φmm) | Akışkan çıkışı (Φmm) | ||||
Münferit | ΦFan (mm) | Hava hacmi (m³/s) | Güç (W) | Voltaj (V) | ||||||
FNH-0.6/2 | 0.6 | 2 | 2x4 | 1 | 200 | 780 | 55 | 220 | 10 | 10 |
FNH-0.9/3 | 0.9 | 3 | 3x4 | 1 | 200 | 780 | 55 | 220 | 10 | 10 |
FNH-1.2/4 | 1.2 | 4 | 3x5 | 1 | 250 | 970 | 80 | 220 | 10 | 10 |
FNH-1.7/6 | 1.7 | 6 | 3x6 | 1 | 300 | 2040 | 1x85 | 220/380 | 10 | 10 |
FNH-2.5/8.0 | 2.5 | 8 | 3x8 | 1 | 300 | 2040 | 1x85 | 220/380 | 10 | 10 |
FNH-4.6/15 | 4.6 | 15 | 4x10 | 1 | 350 | 2700 | 1x180 | 220/380 | 19 | 16 |
FNH-5.4/18 | 5.4 | 18 | 4x10 | 1 | 400 | 4000 | 1x230 | 380 | 19 | 16 |
FNH-6.4/22 | 6.4 | 22 | 5x10 | 1 | 400 | 4000 | 1x230 | 380 | 19 | 16 |
FNH-6.4/22B | 6.4 | 22 | 4x8 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-7.3/28 | 7.3 | 28 | 4x9 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-9.7/33 | 9.7 | 33 | 4x10 | 2 | 350 | 5400 | 2x180 | 380 | 19 | 16 |
FNH-162.0/41 | 12 | 41 | 4x12 | 2 | 400 | 8000 | 2x230 | 380 | 19 | 16 |
FNH-153.8/50 | 13.8 | 50 | 4x14 | 2 | 400 | 8000 | 2x230 | 380 | 19 | 16 |
FNH-16.7/60 | 16.7 | 58 | 4x14 | 2 | 400 | 8000 | 2x230 | 380 | 22 | 19 |
FNH-20.7/70 | 20.7 | 70 | 4x18 | 4 | 350 | 10800 | 4x180 | 380 | 28 | 22 |
FNH-23.0/80 | 23 | 80 | 4x20 | 4 | 400 | 16000 | 4x230 | 380 | 28 | 22 |
FNH-27.6/100 | 27.6 | 100 | 5x20 | 4 | 400 | 16000 | 4x230 | 380 | 28 | 22 |
FNH-33.3/120 | 33.3 | 120 | 5x24 | 4 | 400 | 16000 | 4x230 | 380 | 32 | 25 |
FNH-39.8/140 | 39.8 | 140 | 5x24 | 4 | 450 | 18800 | 4x280 | 380 | 32 | 25 |
FNH-45.6/160 | 45.6 | 160 | 5x26 | 4 | 450 | 18800 | 4x280 | 380 | 32 | 25 |
FNH-49.9/180 | 49.9 | 180 | 5x26 | 4 | 500 | 26400 | 4x460 | 380 | 32 | 25 |

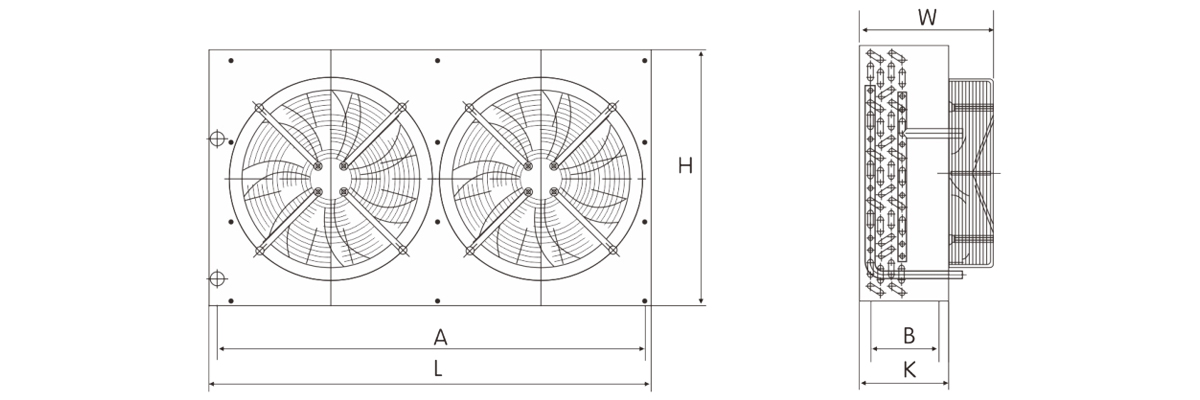

FNH tipi hava soğutmalı kondansatörün görünümü ve kurulum boyutları
Model | Aşırı boyutlar | |||||
L | K | H | A | B | W | |
FNH-0.6/2 | 280 | 95 | 240 | 260 | 65 | 140 |
FNH-0.9/3 | 280 | 120 | 240 | 260 | 80 | 165 |
FNH-1.2/4 | 300 | 120 | 290 | 280 | 80 | 175 |
FNH-1.7/6 | 350 | 150 | 340 | 330 | 110 | 235 |
FNH-2.5/8.0 | 450 | 150 | 435 | 420 | 100 | 250 |
FNH-4.6/15 | 485 | 170 | 535 | 455 | 145 | 280 |
FNH-5.4/18 | 520 | 180 | 535 | 490 | 145 | 290 |
FNH-6.4/22 | 600 | 180 | 535 | 570 | 145 | 290 |
FNH-6.4/22B | 875 | 200 | 435 | 845 | 145 | 290 |
FNH-7.3/28 | 875 | 200 | 485 | 845 | 145 | 290 |
FNH-9.7/33 | 935 | 200 | 535 | 905 | 145 | 290 |
FNH-162.0/41 | 935 | 200 | 635 | 905 | 145 | 290 |
FNH-153.8/50 | 935 | 200 | 735 | 905 | 145 | 290 |
FNH-16.2/58 | 1085 | 200 | 735 | 1055 | 145 | 290 |
FNH-20.7/70 | 1085 | 200 | 935 | 1055 | 145 | 290 |
FNH-23.0/80 | 1100 | 220 | 1035 | 1070 | 165 | 310 |
FNH-27.6/100 | 1100 | 220 | 1035 | 1070 | 165 | 310 |
FNH-33.3/120 | 1130 | 220 | 1035 | 1100 | 165 | 310 |
FNH-39.8/140 | 1190 | 220 | 1235 | 1170 | 165 | 320 |
FNH-45.6/160 | 1250 | 220 | 1335 | 1220 | 165 | 320 |
FNH-49.9/180 | 1410 | 220 | 1335 | 1380 | 165 | 320 |
